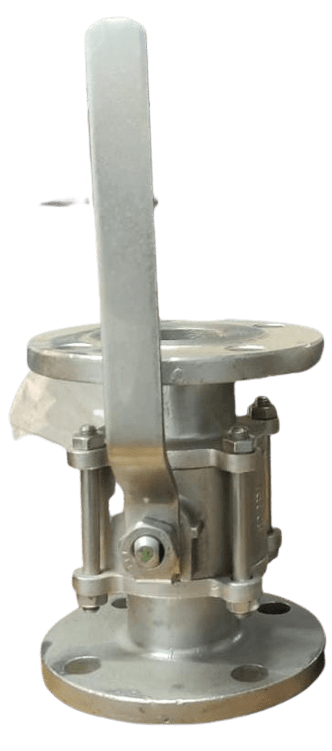

3 PC DESIGN BALL VALVE
3 PC DESIGN BALL VALVE
“Flow-Tech” Ball Valve Design is suit to Full Flow and Low Pressure Drop in Applications in Process Industries. VariousMOC are Available Tomeet all separate Process Requirements. Ball Valve can available in 1PC, 2PC, 3PCDesign with Full Bore& Reduce Bore Flanged End Ball Valve Pressure Rating Class 150# / 300# / 600#.We haveBall Valves in various end connection as Flanged, ButtWeld End.
“Flow-Tech” Ball Valve mainly Used in Process Industries like Chemical, Petrochemicals, Pharmaceuticals, Food&Beverages.
“Flow-Tech” Ball valve design is developed with following and using international Standard For Having AnInternational Competency with GlobalManufacturers.
We “Flow-Tech” follow an international standardsand designs to get 100% superior quality with workmanship&service to maintain trust of our Clients and repeat order
“Flow-Tech” Ball Valve mainly Used in Process Industries like Chemical, Petrochemicals, Pharmaceuticals, Food&Beverages.
“Flow-Tech” Ball valve design is developed with following and using international Standard For Having AnInternational Competency with GlobalManufacturers.
We “Flow-Tech” follow an international standardsand designs to get 100% superior quality with workmanship&service to maintain trust of our Clients and repeat order
| TECHNICAL DETAIL | |
|---|---|
| DESIGN TYPE | FULLBORE DESIGN, REDUCEBORE DESIGN, FLOATINGBALL DESIGN, TRUNIONMOUNTED DESIGN, FIRESAFE DESIGN, EXTENDEDBONNET DESIGN, JACKETED DESIGN |
| MFG. STANDARD | BS 5351 /API 6D |
| TESTING STANDARD | API 598/ BS6755Part-I/ API607 |
| FACET OF FACET STANDARD | ASMEB16.10 |
| FLANGE STANDARD | ASMEB 16.5 |
| BUTT WELDEND STANDARD | ASMEB 16.25 |
| PRESSURE & TEMPERATURE RATING | ASMEB 16.34 |
| PRESSURE CLASS | 150#, 300#, 600#, 900#, 1500#, PN10,PN 16,PN 25,PN 40 |
| VALVE SIZE | 1/2” To 12” (15 mm TO 300 mm) |
| ENDCONNECTIONS | FLANGED / BUTTWELD / RT JOINT |
| FLANGE DRILLING | 150#, 300#, 600#, 900#, 1500#, PN10,PN 16,PN 25,PN 40 BS 10TABLED /E / F /H |
| MATERIAL OF CONSTRUCTIONS | CITOIS 210GR.FG 200 ASTMA 216GR.WCB ASTMA 217GR.WC6 /WC9/ CA15 ASTMA 351GR.CF8 / CF8M/ CF3/ CF3MCD4MCu/ ASTMA 352GR.LCB |
| OPERATIONS | HANDLE /GEAR/ PNEUMATIC/ELECTRICALACTUATOR |
| FACE TO FACE DIMENSIONS (FLANGED) | ||||
|---|---|---|---|---|
| INCH | MM | 150# | 300# | 600# |
| 1/2" | 15 | 108.0 | 140.0 | 165.0 |
| 3/4" | 20 | 1175 | 152.5 | 190.5 |
| 1" | 25 | 127.0 | 165.0 | 216.0 |
| 11/4" | 32 | 140.0 | 178.0 | 229.0 |
| 11/2" | 40 | 165.0 | 190.0 | 241.0 |
| 2" | 50 | 178.0 | 216.0 | 292.0 |
| 2.5" | 65 | 190.0 | 241.0 | 330.0 |
| 3" | 80 | 203.0 | 282.5 | 355.5 |
| 4" | 100 | 229.0 | 305.0 | 432.0 |
| 5" | 125 | 254.0 | 381.0 | 508.0 |
| 6" | 150 | 267.0 | 403.0 | 559.0 |
| 8" | 200 | 292.0 | 419.0 | 660.0 |
| 10" | 250 | 330.0 | 457.0 | 787.0 |
| 12" | 300 | 356.0 | 501.5 | 838.0 |
| **For More & Higher Size, Please Contact Us | ||||
| FACE TO FACE DIMENSIONS (SCREWED / SOCKET) | ||||
|---|---|---|---|---|
| INCH | MM | 150# | ||
| 1/2" | 15 | 69.0 | ||
| 3/4" | 20 | 81.0 | ||
| 1" | 25 | 85.0 | ||
| 11/4" | 32 | 90.0 | ||
| 11/2" | 40 | 105.0 | ||
| 2" | 50 | 124.0 | ||
| 2.5" | 65 | 136.0 | ||
| 3" | 80 | 150.0 | ||
| **For More & Higher Size, Please Contact Us | ||||
| TEST PRESSURE | ||||||
|---|---|---|---|---|---|---|
| CLASS | BODY HYDRO TEST | SEAT HYDRO TEST | AIR TEST | |||
| PSIG | KG/CM2 | PSIG | KG/CM2 | PSIG | KG/CM2 | |
| 150# | 450 | 32 | 315 | 22 | 100 | 7 |
| 300# | 1125 | 79 | 825 | 58 | 100 | 7 |
| 600# | 2225 | 156 | 1640 | 115 | 100 | 7 |
| *Pressure Testing Time Will be 15 Sec. *Test With Water only. | ||||||
