DUPLEX STRAINER
DUPLEX STRAINER

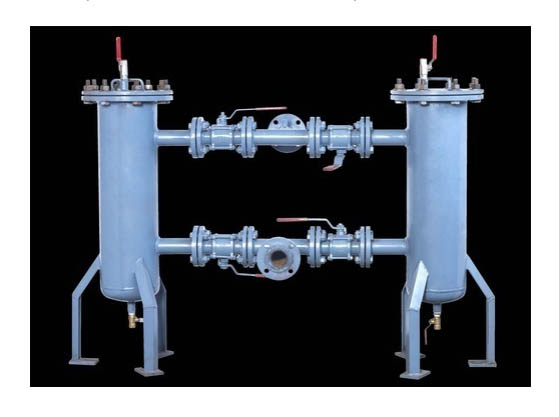

We, “Flow-Tech” are leading manufacturer and Exporters of DUPLEX STRAINER. Our Duplex StrainersDesign is Fabricated Construction. Duplex Strainer is mostly used in continuous process cycleoperation. In this design flow cannot interrupted on cleaning of basket filter inside element. Due tothe presence of large filtration area, pressure drop is minimal. Main benefit of Duplex Strainer whenone Strainer is in operation then second is kept isolated & kept ready for next Cleaning Cycle. DuplexStrainer system is used valve (Three Way Ball Valves or Butterfly Valve) between two baskets to divertthe flow of liquid. When Screen of one Strainer is clogged, flow is diverted to next housing throughValves. It provides ease of cleaning is it can be cleaned anytime as per the conveniences.
“Flow-Tech” provides Various MOC like CS, SS 304 / 316 to meet all separate Process Requirements. Also we provided special metal on request. DUPLEX STRAINERS are available Pressure Rating 150# /300# with various end connection as Flanged & Butt Weld End. We also offer customized design toour client as per their requirement.
“Flow-Tech” Duplex Strainer mainly used in process industries like Chemical, Power, Steel, Marine, Cooling Water, Fertilizer Plants, Pharmaceuticals, Oil & Gas.
“Flow-Tech” Duplex Strainer design is developed for having an International Competency with Global Manufacturers.
We “Flow-Tech” follow an international standards and designs to get 100% superior quality withworkmanship & service to maintain trust of our Clients and repeat order.
“Flow-Tech” provides Various MOC like CS, SS 304 / 316 to meet all separate Process Requirements. Also we provided special metal on request. DUPLEX STRAINERS are available Pressure Rating 150# /300# with various end connection as Flanged & Butt Weld End. We also offer customized design toour client as per their requirement.
“Flow-Tech” Duplex Strainer mainly used in process industries like Chemical, Power, Steel, Marine, Cooling Water, Fertilizer Plants, Pharmaceuticals, Oil & Gas.
“Flow-Tech” Duplex Strainer design is developed for having an International Competency with Global Manufacturers.
We “Flow-Tech” follow an international standards and designs to get 100% superior quality withworkmanship & service to maintain trust of our Clients and repeat order.
FEATURES & BENEFITS:
· Easy Installation & Low maintenance.
· Low Pressure drop across the filter.
· Large dirt holding capacity, longer cleaning cycle time.
· Continuous flow, No need to stop systems for cleaning
· Remove foreign particles, lumps, debris
· Easy cleaning or replacing the element
· Wiremesh up to 5 Micron.
· Drain Available for fast draining
· Adequate strength of element and housing
· Interchangeability of component with another of the same type
| TECHNICAL DETAIL | |
|---|---|
| DESIGN TYPE | BOLTED COVER DAVIT ARM COVER |
| MFG. STANDARD | ASME Section VIII Div.1 |
| TESTING STANDARD | API 598 |
| FACE TO FACE STANDARD | MFG.STANDARD |
| FLANGE STANDARD | ASME B16.5 |
| PRESSURE & TEMPERATURE RATING | ASME B 16.34 |
| PRESSURE CLASS | 150#, 300#, PN10, PN16, PN25, PN40 |
| STRAINER SIZE | 1” To 24” (25 mm TO 600 mm) |
| ENDCONNECTIONS | FLANGED END |
| FLANGE DRILLING | 150#,300#, PN10,PN 16,PN25, PN 40 BS10TABLED / E /F /H |
| MATERIAL OF CONSTRUCTION | CS (ASTM A 106GR.A/B/CSeamless Pipe) / MS (IS 2062/ 1239 / 3589ERW Pipe ) / SS304 / 304L / SS316 / 316L (ASTM A 312 Pipe |
| MATERIAL OF MESH / FILTER | SS304 / 304L / 316/ 316L |
