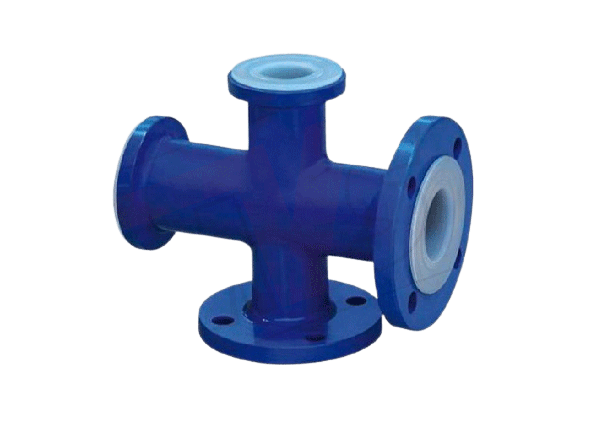

PTFE Lined Unequal Cross

Flow-Tech Valves and Engineers  PTFE Lined Unequal Cross is manufactured in Ductile Iron, Cast Steel and Stainless Steel Casting up to 150 NB Size, Above sizes are supplied as Fabricated. We can supply ptfe lined reducing unequal crosses with one or two reduced bore branches.

Our PFA Lined Reducing Cross can be supplied with virgin liners or static dissipating (Anti-static) liners to prevent static build up within piping on site.

We are able to supply lined crosses up to 3”NB with a cast steel body, larger sizes and crosses with rotating flanges are supplied as fabrications.  We can supply reducing crosses with one or two reduced bore branches.

Technical Specifications of PTFE Lined Unequal Cross :

1) Size Range : 25 mm to 300 mm

2) Types : Unequal Reducing Cross

3) End Connection : Both Sides fixed flanges – Rotating – Fixed On / Off Centres

4) Material : Steel Fabrication – ASTM A234 Gr.WPB with Flanges are as per ASTM A105, IS 2062 , Ductile Iron GGG40.3, ASTM A395, Cast Steel ASTM A216 Gr. WCB, ASTM A312 TP 304 / 316 : SCH.-40,

5) Flanges : Made IS 2062 Plates, ASTM A105, CF8 (SS304), CF8M (SS316)

6) Flange Dimensions : DIN PN10/16, BS 10, ASME 150 / 300, Mixed

7) Lining : Moulded FEP, PFA

8) Lining Options : PVDF, PP, HDPE

9) Lining Thickness : Minimum 3.5 mm / 6.0 overall (±1.0 Lining Tolerance)

10) Lining Spark Test : 20 KVDC After lining

11) Hydraulic Test : 29 Kg/Cm2 After Lining

Design Specifications

Flange : As per ANSI B 16.5/B 16.42

Face to Face : As per ANSI B 16.5 # 150

Other Flanges Drilling like DIN 2632 / 2633, BS 10 Table D, E or F are also available on request. Sizes above 6″ fabricated from pipe

Options

Flange : Rotating, Fixed On / Off center DIN PN 10/16, BS 10, ASME 300, Mixed

Extras : Earthing Studs / Lugs, Vent Extensions

Geometry : Non Standard Dimensions
