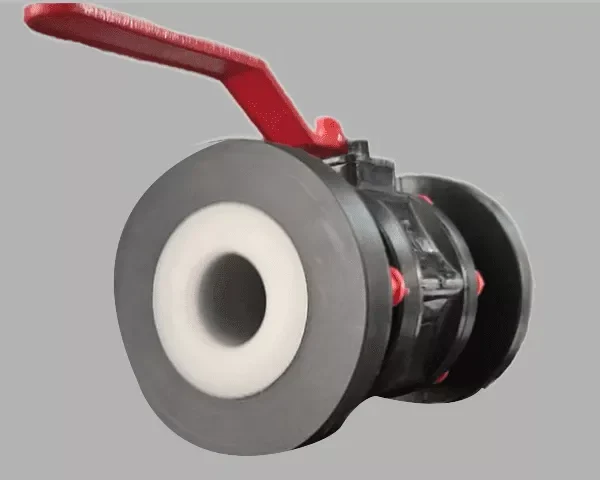

PVDF LINED BALL VALVE
DATA SHEET FOR PVDF Lined Ball Valve
| SR. NO. | PART | MATERIAL | QUANTITY |
| 1 | Body | Isotactic PP with FULL BORE PVDF Lining | 1 |
| 2 | Ball | Solid PVDF | 1 |
| 3 | Side piece / connector | PVDF Lining with PP | 2 |
| 4 | Stem | SS-304 | 1 |
| 5 | Spindle | PVDF Coated | 1 |
| 6 | Seat ring | PTFE | 2 |
| 7 | Connector seal | Viton | 2 |
| 8 | Stem seal ring | Viton | 1 |
| 9 | Stud, Nut and Washer | SS-304 | Req. |
| 10 | Nut Cap | PP | Req. |
| 11 | Handle | MS with Powder Coated | 1 |
| 12 | Handle hex pin | MS | 1 |
- High temperature and chemical resistance material.
- Low operating torque.
- UV stabilized material to avoid cracks against sunlight.
- Better resistance to solvents, chemicals and temperatures.
- Suitable for bromine and 98% sulfuric acid.
| BODY | 25NB TO 50NB | 10 KG/CM2 (140 PSI) |
| 80NB TO 100NB | 8 KG/CM2 (115 PSI) | |
| SEAT | 25NB TO 100NB | 10 KG/CM2 (140 PSI) |
- ASA #150
- F- Table
- Capsule Shape (Universal Drill)
- PVDF-Polyvinylidene fluoride-1100 C
| Size | D | D1 | T | PVDFLining
thickness |
L | L1 | H | PCD | ||||||
| BS 10 table ‘f’ | Asa # 150 | |||||||||||||
| PCD | Dia of Hole | No. of Hole | PCD | Dia of Hole | No. of Hole | |||||||||
| 25NB | 1” | 115 | 24 | 17 | 2.5 | 156 | 145 | 85 | 87 | 14 | 4 | 79 | 14 | 4 |
| 40NB | 1 ½” | 142 | 40 | 19 | 2.5 | 190 | 170 | 103 | 105 | 15 | 4 | 98 | 15 | 4 |
| 50NB | 2” | 162 | 49 | 20 | 3.5 | 223 | 210 | 118 | 127 | 17 | 4 | 120 | 17 | 4 |
| 80NB | 3” | 205 | 74 | 26 | 4 | 270 | 255 | 156 | 165 | 17 | 8 | 152 | 17 | 4 |
| 100NB | 4” | 230 | 96 | 28 | 4 | 285 | 255 | 191 | 191 | 17 | 8 | 191 | 17 | 8 |
