PTFE Lined Y Strainer

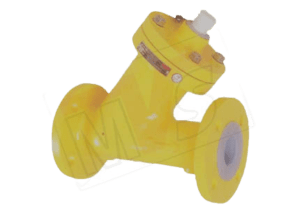

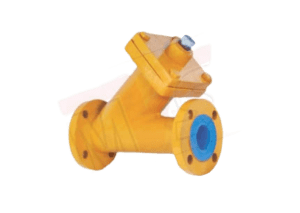

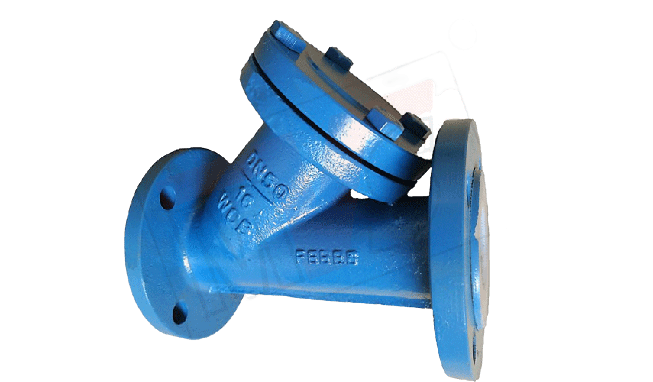

Flow-Tech Valves and Engineers  PTFE Lined Y Strainer features Uni Directional Bolted Cover with Drain Plug, Full Port Y Type Body fully lined with FEP, PFA, PVDF and PP having flanged ends connection as per Class 150.

Our PFA Lined Y Type Strainers of Filters has a FEP, PFA, PVDF, PP lined ductile iron, cast steel and stainless steel body. The PFA lining and PTFE mesh basket ensure long life in the most arduous conditions.

The PTFE Lined Y Type Strainers is designed to give minimum pressure losses using a large area PTFE filter basket.  The standard screen size is 40 or 60 mesh.

The filter basket can be removed for cleaning or changing without removing the ptfe lined y type strainer from the pipe line. The filter basket assembly is with a PTFE drain plug to drain fluid prior to basket removal.

Technical Specifications of PTFE Lined Y Strainer

1) Design and Testing Standard : As per Manufacturer’s Standard

2) Size Range : 25 mm to 200 mm

3) Flange : As per ANSI B16.5 / B16.42

4) Drilling : ASA #150, DIN 2632 / 33, BS 10 TABLE D, E, F

5) Face to Face : As per Manufacturer’s Standard

6) Lining Thickness : 3 to 5 mm

7) Body M.O.C. : Ductile Iron GGG40.3 / ASTM A395, Cast Steel ASTM A216 Gr. WCB

8) Filter Element / Drain Plug : PTFE

9) Degree of Filtration : Ø1mm Perforated PTFE Filter

10) Lining Material Options : PFA – ASTM D 3307, FEP – ASTM D 2116, PVDF – ASTM D 3322, PP – ASTM D 4101, HDPE

11) Test and Inspection : Hydraulic Test : Body (Shell) 20 Kg/Cm

12) Spark Test (Lined Flanges) : 15 K.V.D.C.

13) Design Options : Y Type Strainer With Drain Ball Valve, PTFE Lined Basket Type Filter Strainer, PTFE Lined T Type Strainer

manufacturers of pfa lined Y Strainer in India
